Tube & Pipe
Fiber Lasers

Compare cutting ranges, chuck arrangements, tube loads, and power choices for your work.

Explore Models Help Me Choose →

FIND YOUR WORKING FORMAT

Explore the Range

SeriesPower optionSort models

Measured-size sorting places models without confirmed measurements last.

Professional Series

PROFESSIONAL SERIES

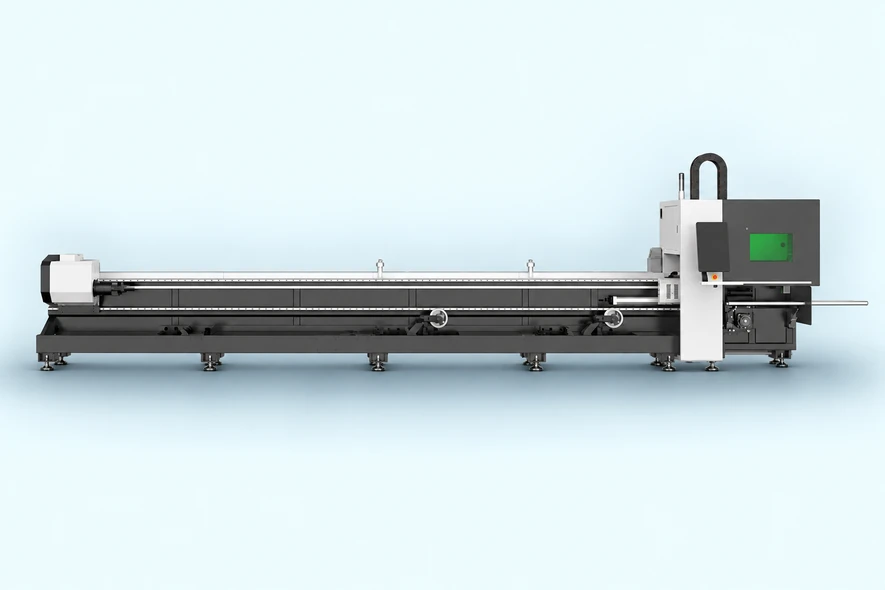

Small-profile two-chuck

Start with the smaller-profile platforms and compare their documented cutting ranges and chuck openings. Review stock length and power choices against the parts you plan to produce.

Compare	Model	Standard effective cutting length^†	Round tube cutting range	Standard chuck opening	Chucks	Tube load^‡	Power options (kW)	Next step
	`CNCS-P-FL-21-4-R-2CH`	21 ft(6,500 mm)	Ø 3/8 – 4-3/4″(Ø 10 – 120 mm)	4-3/4″(120 mm)	2	176 lbs(80 kg)	1.5, 3, 6	Request Quote
Full specifications Capacity & Configuration Standard effective cutting length^† 21 ft(6,500 mm) Round tube cutting range Ø 3/8 – 4-3/4″(Ø 10 – 120 mm) Standard chuck opening 4-3/4″(120 mm) Chucks 2 Tube load^‡ 176 lbs(80 kg) Laser power choices 1.5 kW, 3 kW, or 6 kW Square tube cutting range 3/8 – 4-3/4″ side(10 – 120 mm side) Rectangular tube limit Diagonal ≤ 4-3/4″(Diagonal ≤ 120 mm) Maximum chuck rotation 200 r/min (weight-dependent) Maximum acceleration 1.0 g Minimum remnant (conditional) 1-1/8″(30 mm)subject to suitable part layout and cutting strategy; confirm for your application Bevel capability Not offered Alternate cutting lengths 24 ft or 31 ft nominal (Optional) Fully automatic loading^* Supported; equipment inclusion to be confirmed in your quotation Semi-automatic loading^* Supported; equipment inclusion to be confirmed in your quotation Tube-follow support Included (standard) Front-chuck overtravel Included (standard) Waste collector Standard Nesting software capability^* Supported; equipment inclusion to be confirmed in your quotation Material-utilization function (not a zero-remnant guarantee)^* Supported; equipment inclusion to be confirmed in your quotation Extraction Dust collector listed as available equipment (Optional) Air compressor Air compressor listed as available equipment (Optional) Machine & Equipment Listed Component Configurations Listed component configurations are subject to confirmation in your quotation; listing does not establish standard inclusion. Laser source configuration MAX Cutting-head configuration BOCI Controller configuration CYPCUT Cooling configuration S&A water cooling
	`CNCS-P-FL-21-6-R-2CH`	21 ft(6,500 mm)	Ø 3/8 – 6-1/4″(Ø 10 – 160 mm)	6-1/4″(160 mm)	2	176 lbs(80 kg)	1.5, 3, 6	Request Quote
Full specifications Capacity & Configuration Standard effective cutting length^† 21 ft(6,500 mm) Round tube cutting range Ø 3/8 – 6-1/4″(Ø 10 – 160 mm) Standard chuck opening 6-1/4″(160 mm) Chucks 2 Tube load^‡ 176 lbs(80 kg) Laser power choices 1.5 kW, 3 kW, or 6 kW Square tube cutting range 3/8 – 6-1/4″ side(10 – 160 mm side) Rectangular tube limit Diagonal ≤ 6-1/4″(Diagonal ≤ 160 mm) Maximum chuck rotation 140 r/min (weight-dependent) Maximum acceleration 1.0 g Minimum remnant (conditional) 1-1/8″(30 mm)subject to suitable part layout and cutting strategy; confirm for your application Bevel capability Not offered Alternate cutting lengths 24 ft or 31 ft nominal (Optional) Fully automatic loading^* Supported; equipment inclusion to be confirmed in your quotation Semi-automatic loading^* Supported; equipment inclusion to be confirmed in your quotation Tube-follow support Included (standard) Front-chuck overtravel Included (standard) Waste collector Standard Nesting software capability^* Supported; equipment inclusion to be confirmed in your quotation Material-utilization function (not a zero-remnant guarantee)^* Supported; equipment inclusion to be confirmed in your quotation Extraction Dust collector listed as available equipment (Optional) Air compressor Air compressor listed as available equipment (Optional) Machine & Equipment Listed Component Configurations Listed component configurations are subject to confirmation in your quotation; listing does not establish standard inclusion. Laser source configuration MAX Cutting-head configuration BOCI Controller configuration CYPCUT Cooling configuration S&A water cooling

Industrial Series

INDUSTRIAL SERIES

Two-chuck

Compare the available size and workpiece-load choices within the industrial two-chuck range. Match your stock dimensions and handling requirements to the documented configuration.

Compare	Model	Standard effective cutting length^†	Round tube cutting range	Standard chuck opening	Chucks	Tube load^‡	Power options (kW)	Next step
	`CNCS-I-FL-21-9-R-2CH`	21 ft(6,500 mm)	Ø 3/4 – 9-1/2″(Ø 20 – 240 mm)	9-1/2″(240 mm)	2	882 lbs(400 kg)	3, 6, 12	Request Quote
Full specifications Capacity & Configuration Standard effective cutting length^† 21 ft(6,500 mm) Round tube cutting range Ø 3/4 – 9-1/2″(Ø 20 – 240 mm) Standard chuck opening 9-1/2″(240 mm) Chucks 2 Tube load^‡ 882 lbs(400 kg) Laser power choices 3 kW, 6 kW, or 12 kW Square tube cutting range 3/4 – 9-1/2″ side(20 – 240 mm side) Rectangular tube limit Diagonal ≤ 13-1/4″, Minimum edge ≥ 3/4″(Diagonal ≤ 335 mm, Minimum edge ≥ 20 mm) Alternate chuck openings 11″(280 mm)(Optional) Maximum chuck rotation 100 r/min (weight-dependent) Maximum acceleration 1.0 g Minimum remnant (conditional) 3-7/8″(100 mm)subject to suitable part layout and cutting strategy; confirm for your application Bevel capability^* Supported; equipment inclusion to be confirmed in your quotation Alternate cutting lengths 24 ft or 31 ft nominal (Optional) Fully automatic loading Not offered Semi-automatic loading^* Supported; equipment inclusion to be confirmed in your quotation Tube-follow support Included (standard) Front-chuck overtravel Included (standard) Waste collector Standard Nesting software capability^* Supported; equipment inclusion to be confirmed in your quotation Material-utilization function (not a zero-remnant guarantee)^* Supported; equipment inclusion to be confirmed in your quotation Extraction Dust collector listed as available equipment (Optional) Air compressor Air compressor listed as available equipment (Optional) Machine & Equipment Listed Component Configurations Listed component configurations are subject to confirmation in your quotation; listing does not establish standard inclusion. Laser source configuration MAX Cutting-head configuration RAYTOOLS Controller configuration CYPCUT Cooling configuration S&A water cooling
	`CNCS-I-FL-21-14-R-2CH`	21 ft(6,500 mm)	Ø 1-1/8 – 13-3/4″(Ø 30 – 350 mm)	14-1/8″(360 mm)	2	2,646 lbs(1,200 kg)	6, 12, 20, 30	Request Quote
Full specifications Capacity & Configuration Standard effective cutting length^† 21 ft(6,500 mm) Round tube cutting range Ø 1-1/8 – 13-3/4″(Ø 30 – 350 mm) Standard chuck opening 14-1/8″(360 mm) Chucks 2 Tube load^‡ 2,646 lbs(1,200 kg) Laser power choices 6 kW, 12 kW, 20 kW, or 30 kW Square tube cutting range 1-1/8 – 13-3/4″ side(30 – 350 mm side) Rectangular tube limit Diagonal ≤ 19-1/4″, Minimum edge ≥ 1-1/8″(Diagonal ≤ 490 mm, Minimum edge ≥ 30 mm) Maximum chuck rotation 60 r/min (weight-dependent) Maximum acceleration 1.0 g Bevel capability^* Supported; equipment inclusion to be confirmed in your quotation Alternate cutting lengths 24 ft or 31 ft nominal (Optional) Fully automatic loading Not offered Semi-automatic loading^* Supported; equipment inclusion to be confirmed in your quotation Tube-follow support Included (standard) Front-chuck overtravel Included (standard) Waste collector Standard Nesting software capability^* Supported; equipment inclusion to be confirmed in your quotation Material-utilization function (not a zero-remnant guarantee)^* Supported; equipment inclusion to be confirmed in your quotation Extraction Dust collector listed as available equipment (Optional) Air compressor Air compressor listed as available equipment (Optional) Machine & Equipment Listed Component Configurations Listed component configurations are subject to confirmation in your quotation; listing does not establish standard inclusion. Laser source configuration MAX Cutting-head configuration BOCI Controller configuration CYPCUT Cooling configuration S&A water cooling

INDUSTRIAL SERIES

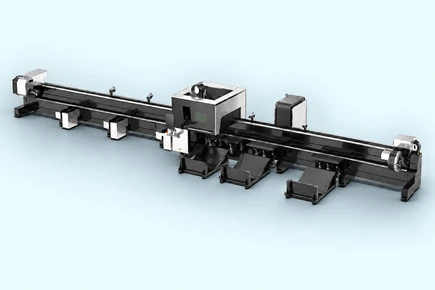

Three-chuck

This class uses a three-chuck arrangement with documented length and handling options. Review loading, unloading, and your part layout with SEPCO before choosing a configuration.

Compare	Model	Standard effective cutting length^†	Round tube cutting range	Standard chuck opening	Chucks	Tube load^‡	Power options (kW)	Next step
	`CNCS-I-FL-21-14-R-3CH`	21 ft(6,500 mm)	Ø 1-1/8 – 13-3/4″(Ø 30 – 350 mm)	14-1/8″(360 mm)	3	2,646 lbs(1,200 kg)	6, 12, 20, 30	Request Quote
Full specifications Capacity & Configuration Standard effective cutting length^† 21 ft(6,500 mm) Round tube cutting range Ø 1-1/8 – 13-3/4″(Ø 30 – 350 mm) Standard chuck opening 14-1/8″(360 mm) Chucks 3 Tube load^‡ 2,646 lbs(1,200 kg) Laser power choices 6 kW, 12 kW, 20 kW, or 30 kW Square tube cutting range 1-1/8 – 13-3/4″ side(30 – 350 mm side) Rectangular tube limit Diagonal ≤ 19-1/4″, Minimum edge ≥ 1-1/8″(Diagonal ≤ 490 mm, Minimum edge ≥ 30 mm) Alternate chuck openings 9-1/2″, 11″, 19-5/8″, or 25-5/8″(240 mm, 280 mm, 500 mm, or 650 mm)(Optional) Maximum chuck rotation 60 r/min (weight-dependent) Maximum acceleration 0.5 g Bevel capability^* Supported; equipment inclusion to be confirmed in your quotation Alternate cutting lengths 24 ft, 31 ft, or 41 ft nominal (Optional) Alternate unloading lengths 21 ft, 24 ft, 31 ft, or 41 ft (Optional) Fully automatic loading Not offered Semi-automatic loading^* Supported; equipment inclusion to be confirmed in your quotation Semi-automatic unloading^* Supported; equipment inclusion to be confirmed in your quotation Tube-follow support Included (standard) Front-chuck overtravel Included (standard) Waste collector Standard Extraction Dust collector listed as available equipment (Optional) Air compressor Air compressor listed as available equipment (Optional) Machine & Equipment Listed Component Configurations Listed component configurations are subject to confirmation in your quotation; listing does not establish standard inclusion. Laser source configuration MAX Cutting-head configuration BOCI Controller configuration CYPCUT Cooling configuration S&A water cooling

INDUSTRIAL SERIES

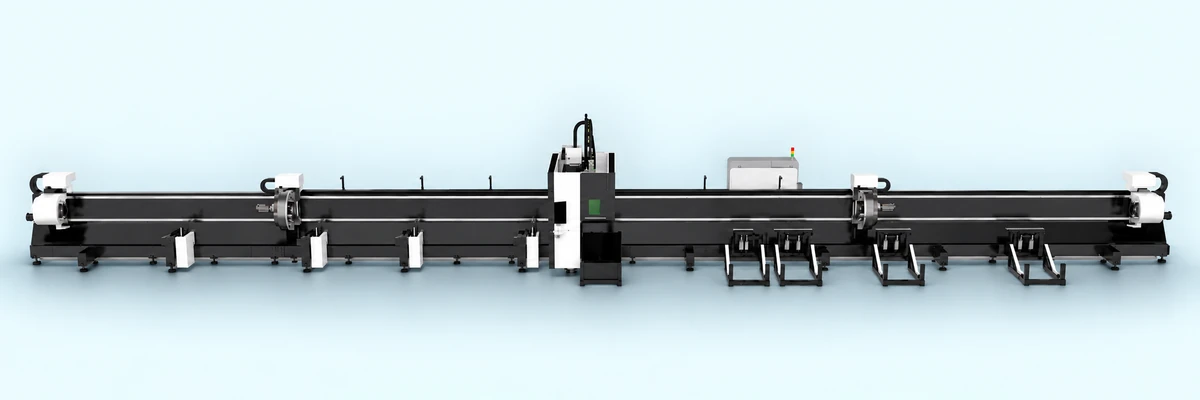

Four-chuck

The four-chuck platform accommodates longer stock within its documented cutting length and workpiece-load limits. Review stock handling and your application together when selecting options.

Compare	Model	Standard effective cutting length^†	Round tube cutting range	Standard chuck opening	Chucks	Tube load^‡	Power options (kW)	Next step
	`CNCS-I-FL-41-19-R-4CH`	41 ft(12,500 mm)	Ø 1-5/8 – 19-5/8″(Ø 40 – 500 mm)	19-5/8″(500 mm)	4	4,409 lbs(2,000 kg)	6, 12, 20, 30	Request Quote
Full specifications Capacity & Configuration Standard effective cutting length^† 41 ft(12,500 mm) Round tube cutting range Ø 1-5/8 – 19-5/8″(Ø 40 – 500 mm) Standard chuck opening 19-5/8″(500 mm) Chucks 4 Tube load^‡ 4,409 lbs(2,000 kg) Laser power choices 6 kW, 12 kW, 20 kW, or 30 kW Square tube cutting range 1-5/8 – 19-5/8″ side(40 – 500 mm side) Rectangular tube limit A/B ≤ 19-5/8″ and diagonal ≤ 27-1/2″(A/B ≤ 500 mm and diagonal ≤ 700 mm) Alternate chuck openings 14-1/8″ or 25-5/8″(360 mm or 650 mm)(Optional) Maximum chuck rotation 60 r/min (weight-dependent) Maximum acceleration 0.3 g Bevel capability^* Supported; equipment inclusion to be confirmed in your quotation Alternate cutting lengths Custom longer lengths (Optional); maximum length requires confirmation Alternate unloading lengths 21 ft, 24 ft, or 41 ft (Optional) Fully automatic loading Not offered Semi-automatic loading^* Supported; equipment inclusion to be confirmed in your quotation Semi-automatic unloading^* Supported; equipment inclusion to be confirmed in your quotation Tube-follow support Included (standard) Front-chuck overtravel Included (standard) Waste collector Standard Extraction Dust collector listed as available equipment (Optional) Air compressor Air compressor listed as available equipment (Optional) Machine & Equipment Listed Component Configurations Listed component configurations are subject to confirmation in your quotation; listing does not establish standard inclusion. Laser source configuration MAX Cutting-head configuration BOCI Controller configuration CYPCUT Cooling configuration S&A water cooling

Specification Notes

* Specifications vary by configuration. Final equipment and options are confirmed in your quotation. Unconfirmed fields may be omitted from individual specifications. In comparisons, a dash indicates information not yet confirmed—not that a feature is unavailable. Imperial conversions are approximate; inch measurements are rounded to the nearest 1/8 inch. Documented metric dimensions govern fit. Two unconfirmed values do not establish equivalent capability.

† Cutting lengths shown in feet are nominal sizes rounded to the nearest whole foot. The documented metric measurements shown beneath govern actual cutting length and fit.

‡ Load refers to the workpiece, not machine weight. Chuck opening is not a confirmed cutting range. Approximate imperial conversions are shown alongside documented metric dimensions.

Choosing Your Tube Platform

Cutting range and chuck opening

Start with your actual profile dimensions. Compare the documented cutting range separately from the chuck opening.

Stock and handling

Match effective cutting length and workpiece weight to your stock, then review loading and unloading options.

Your part layout

Review chuck arrangement, conditional remnant limits, and handling requirements against the jobs you expect to run.
